New Yorker Electronics Releases Industry’s First 4-Qadrant Silicon PIN Photodiode in SMD Package

NORTHVALE, New Jersey, USA – New Yorker Electronics has announced the introduction of Vishay’s industry first 4-Quadrant Silicon PIN Photodiode in a standard surface-mount package, qualified for automotive applications. Combining high photo sensitivity with low 0.1% electrical segment to segment crosstalk and virtually no tolerance between its segments, the Vishay Semiconductors K857PE enables a variety of sensor and control applications for the automotive, consumer and industrial markets.

This new device combines four monolithic diodes integrated into a single 4.72mm x 4.72mm x 0.8mm top-view, surface-mount package. The defined gap between the K857PE’s four radiant sensitive areas allows for reliable measurement during laser positioning. The opaque package sides eliminate stray light irradiating the photodiodes, resulting in excellent signal to noise ratio while the linear photo response enables small signal detection.

Another important feature is that the current from each of the device’s PIN diodes can be processed individually. This results in low 0.1 % electrical crosstalk and virtually no tolerance between segments.

The Vishay K857PE retains an active area of 1.6 mm2 per quadrant and provides a floor life rating of 168h, in accordance with J-STD-020. It has a wide sensitivity range from 69 nm to 1050nm, a 8.5µA reverse light current and a ± 60° angle of half sensitivity. The device is AEC-Q101 qualified, RoHS-compliant, halogen-free and Vishay Green.

Features & Benefits:

  • Four monolithic diodes integrated into a single 4.72mm x 4.72mm x 0.8mm top-view, surface-mount package
  • Active area of 1.6mm2 per quadrant
  • AEC-Q101 qualified
  • Low electrical crosstalk
  • Virtually no tolerance between segments
  • Wide sensitivity range from 690nm to 1050nm
  • 5µA reverse light current
  • Daylight blocking filter
  • ±60° angle of half sensitivity
  • RoHS-compliant, halogen-free, and Vishay Green
  • Floor life of 168 h in accordance with J-STD-020

Applications:

  • Small signal detection for automotive rain / light sensors
  • Industrial automation systems
  • Laser beam alignment
  • Virtual reality

Vishay Semiconductors includes the former Vishay Telefunken product lines, the former General Semiconductor product lines, the infrared component product lines acquired from Infineon Technologies, and selected product lines acquired from International Rectifier (excluding planar high-voltage MOSFETs). As a franchise distributor for Vishay Semiconductors, New Yorker Electronics supplies its full portfolio of rectifiers, fast-recovery diodes, high-power diodes and thyristors, small-signal diodes, Zener and suppressor diodes, RF transistors, optoelectronics, power modules (a combination of power diodes, thyristors, MOSFETs, and IGBTs), and automotive modules and assemblies.

About New Yorker Electronics
New Yorker Electronics is a certified franchised distributor of electronic components, well known for its full product lines, large inventories and competitive pricing since 1948. It is an AS9120B and ISO 9001:2015 certified source of passive components, discrete semiconductors, electromechanical devices, Flash & DRAM modules, embedded board solutions, power supplies and connectors, and operates exclusively at heightened military and aerospace performance levels. New Yorker Electronics operates in strict accordance with AS5553 and AS6496 standards in its everyday procedures to thwart the proliferation of counterfeit parts. It is a member of ECIA (Electronics Component Industry Association) and of ERAI (Electronic Resellers Association International).

Newly Upgraded Vishay Power MOSFET is Improved for Automotive Applications

NORTHVALE, New Jersey, USA – New Yorker Electronics has released the new Vishay Siliconix Automotive Grade SQJ152ELP MOSFET, a technically advanced upgrade to the Vishay SQJ858AEP. This 40V, 5.5mΩ TrenchFET® Gen IV in a PowerPAK® SO-8L is an Automotive N-Channel 175°C MOSFET.

Combining upgraded performance figures and robustness, the SQJ152ELP is well-suited to replace the SQJ858AEP in new designs for multiple automotive applications, including solid state relays, high side switches, motor drive controls and other safety and convenience systems. The device’s package construction employs a wire-free design that extends the MOSFET’s drain current capabilities, while reducing its thermal resistance. Compared to the SQJ858AEP, the SQJ152ELP’s continuous drain current rating has increased by 112-percent.

The SQJ152ELP’s typical RDS(ON) – Qg FOM at a VGS of 4.5 V is 61mΩ × nC, which is the lowest among similar products with RDS(ON) of 4.5mΩ to 6.5mΩ. Its 38-percent lower Qg reduces gate driver related power losses and contributes to the class-leading FOM, which, according to Vishay, is five percent lower than the next best product on the market.

In addition to its improved electrical parameters, the PowerPAK SO-8L package offers proven board-level reliability capabilities. Its internal construction and external gullwing leads are engineered for maximum stress relief during extremes of thermal and mechanical stress. The package has passed extended powered temperature cycling and rapid temperature cycling, as well as PCB flexing and vibration tests.

Features & Benefits:

  • Class-leading RDS(on) – Qg FOM of 61 mΩ × nC at a VGS of 4.5 V
  • Wire-free construction reduces parasitic inductance
  • Test-proven, enhanced board-level reliability
  • Passed power temperature cycling, board dropping, flexing, and vibration tests
  • RoHS compliant, Halogen free, AEC-Q101 qualified, 100% Rg and UIS tested

Applications:

  • Automotive Applications:
  • Relays
  • High Side Switches
  • Motor drive controls
  • Safety & Convenience Systems

As a franchise distributor, New Yorker Electronics supplies Vishay Siliconix power semiconductor products including low-voltage power MOSFETs (metal-oxide semiconductor field-effect transistors), higher-voltage Vishay Siliconix power MOSFETs and Power ICs.

About New Yorker Electronics
New Yorker Electronics is a certified franchised distributor of electronic components, well known for its full product lines, large inventories and competitive pricing since 1948. It is an AS9120B and ISO 9001:2015 certified source of passive components, discrete semiconductors, electromechanical devices, Flash & DRAM modules, embedded board solutions, power supplies and connectors, and operates exclusively at heightened military and aerospace performance levels. New Yorker Electronics operates in strict accordance with AS5553 and AS6496 standards in its everyday procedures to thwart the proliferation of counterfeit parts. It is a member of ECIA (Electronics Component Industry Association) and of ERAI (Electronic Resellers Association International).

New Yorker Electronics Introduces the Autec Power Systems new Industrial Desktop Power Adapter

NORTHVALE, New Jersey, USA – New Yorker Electronics has introduced Autec Power Systems’ new DTXXXE Series of Industrial Desktop Power Adapters, nicknamed ‘The Eclipse’. This industrial adapter features a 100 to 240Vac universal input voltage and a Level VI efficiency rating.

The Eclipse Desktop Power Supply is a constant voltage type, class I power adapter available through New Yorker Electronics in power ratings of 60W and 90W. The 60W is available in 5V; the 90W is available in 5V, 12V, 15V, 19V, 24V and 48V. Being UL, cUL and CE certified with an earth ground pin, the industrial desktop adapter is appropriate for consumer electronics, office equipment and industrial equipment applications.

The unit features an EC60320-C14 Inlet and its safety features include: Over Voltage Protection (OVP), Over Temperature Protection (OTP), Short Circuit Protection (SCP) and Optical Line Protection (OLP). It boasts a mean time between failures (MTBF) of 405.6Khrs and no load consumption less than 0.5W while on standby. The sleek 120x52x31.5mm design houses a Molex Output Connector.

Features & Benefits:

  • Single output from 60W
  • 100-240Vac Universal input
  • Constant Voltage Type
  • Efficiency Level VI
  • No load consumption <0.5W
  • Class I Power(with earth pin)
  • OLP, OTP, SCP and OVP
  • IEC60320-C14 Inlet
  • MTBF: 405.6Khrs

Applications:

  • Consumer electronics and office equipment
  • Industrial equipment

Customization of any of Autec’s power supplies to meet specific application requirements is always an option. As a franchise distributor, New Yorker Electronics supplies Autec Power Systems’ full line of Wall Mount and Desktop Adapters, LED Drivers, AutecFLEX High Power Density PSUs as well as Primary, Coin Cell and Rechargeable Battery solutions.

About New Yorker Electronics

New Yorker Electronics is a certified franchised distributor of electronic components, well known for its full product lines, large inventories and competitive pricing since 1948. It is an AS9120B and ISO 9001:2015 certified source of passive components, discrete semiconductors, electromechanical devices, Flash & DRAM modules, embedded board solutions, power supplies and connectors, and operates exclusively at heightened military and aerospace performance levels. New Yorker Electronics operates in strict accordance with AS5553 and AS6496 standards in its everyday procedures to thwart the proliferation of counterfeit parts. It is a member of ECIA (Electronics Component Industry Association) and of ERAI (Electronic Resellers Association International).

New Yorker Electronics Delivers Advanced New 96-Layer 3D NAND Flash Storage from Innodisk

NORTHVALE, New Jersey, USA – New Yorker Electronics has announced the release of Innodisk’s 96-layer 3D NAND flash product lineup, delivering advanced new flash storage technology to demanding industrial applications worldwide. The series includes two models: 3TE7 and 3TG6-P, with the former being DRAM-less and the latter using an external DRAM chip and a Marvell controller.

Both devices use pure industrial-grade 3D TLC NAND from Toshiba with a rated P/E cycle number of 3000, ensuring lasting endurance as required by many embedded applications. The firmware is optimized for industrial use. The SSDs strictly avoid SLC caching to avoid performance drops and increased write amplification that lower P/E cycle numbers through excessive data transfers within the SSD. This solid state drive (SSD) series is designed to tackle the tough conditions seen in many embedded environments and to handle the challenges of edge computing.

The Innodisk 2.5” SATA SSD 3TE7 is a SATA III 6.0 Gb/s flash-based disk that adopts the latest SATA III NAND controller with Innodisk’s exclusive L³FW architecture. The upgraded L³ FW architecture, combines Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology. This ensures the 3TE7 series has outstanding high IOPS, improved data integrity and extended lifespan through reducing the bad block number happening. A built-in thermal sensor and iData Guard assures data integrity and reliability of the 2.5” SATA SSD 3TE7 for industrial applications.

The Innodisk 2.5” SATA SSD 3TG6-P is a SATA III 6Gb/s solid state disk, which delivers top performance especially in random data transfer rate. Its reliability makes it ideal for embedded systems, industrial computing and enterprise fields. The 3TG6-P 2.5” SSD is designed with Innodisk-owned technology to ensure the data integrity and highest levels of reliability.

The modules can incorporate AES encryption for data security and End-to-End Data Path Protection to ensure error correction at every point of data transfer. The modules can also be fitted with Innodisk’s trio of power stabilizing technologies iCell™, iPower Guard™ and iData Guard™ to further strengthen data integrity in areas susceptible to power fluctuations.

Features & Benefits:

  • Vibration: 20G @7~2000Hz
  • Shock: 1500G @ 0.5ms
  • Storage Temperature: -55°C ~ +95°C
  • MTBF: 3 million hours
  • 6 W

Applications:

  • 5” SATA Slim SATA III solution for industrial field
  • High IOPS
  • iSMART disk health monitoring
  • AES-256 encryption (3TE7)
  • iPower Guard for protecting unstable start up and shut down (3TE7)
  • iData Guard for abnormal power failure

As a franchised distributor for Innodisk, New Yorker Electronics supplies the full portfolio of Innodisk Flash Storage products including SSD, SATADOM, mSATA, Embedded Disk Cards, as well as Embedded, Server, Wide-Temperature and Customized Draw Modules and Embedded Peripherals.

About New Yorker Electronics
New Yorker Electronics is a certified franchised distributor of electronic components, well known for its full product lines, large inventories and competitive pricing since 1948. It is an AS9120B and ISO 9001:2015 certified source of passive components, discrete semiconductors, electromechanical devices, Flash & DRAM modules, embedded board solutions, power supplies and connectors, and operates exclusively at heightened military and aerospace performance levels. New Yorker Electronics operates in strict accordance with AS5553 and AS6496 standards in its everyday procedures to thwart the proliferation of counterfeit parts. It is a member of ECIA (Electronics Component Industry Association) and of ERAI (Electronic Resellers Association International).

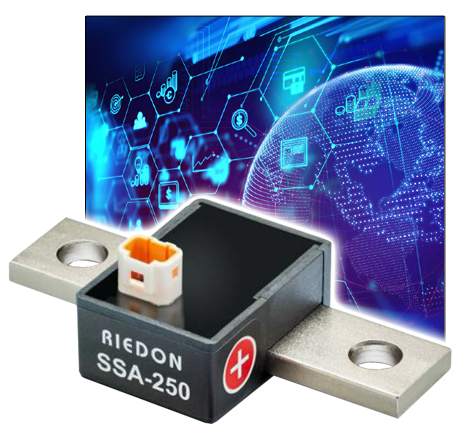

Riedon SSA Smart Shunt Series Uses Isolated Smart Current Measurement Technology

NORTHVALE, New Jersey, USA – New Yorker Electronics has announced the release of the new SSA Smart Current Sensor series from Riedon. Riedon’s new Smart Shunt SSA combines low-impedance manganese shunt resistance, a high-precision insulated amplifier, and an isolated DC/DC converter.

Riedon’s SSA family of Isolated Smart Current Measurement Technology consists of four current ratings: 100A, 250A, 500A and 1000A. This makes them suitable for use in high-power applications, where harsh conditions may be an issue, such as with elevated temperature levels, heavy vibrations and electro-magnetic interference (EMI). They are therefore ideal for use in electric vehicle (EV) and hybrid-electric vehicle (HEV) traction inverters, AC/DC converters, uninterruptible power supplies, renewable energy generation sites and smart grid infrastructure.

The SSA is insensitive to magnetic fields, and, unlike Hall-effect sensors, can be freely positioned without the need for additional shielding. This allows for more flexibility during development. These next-generation current sensing modules combine the attributes of conventional passive shunt resistors with those normally associated with considerably more expensive and bulky closed-loop Hall Effect current sensors. Each featuring a built-in precision amplifier, they offer reinforced electrical isolation (up to 1500VDC), alongside industry-leading levels of stability and accuracy. Shunt-based systems are generally easier to implement because they are more linear and offer higher current measurement accuracy than Hall-based methods.

The new SSA devices feature 1500 VDC/1000 VAC RMS reinforced isolation, ± 0.1% initial sensing accuracy, ± 0.1% linearity over current range, unipolar power supply, differential analog output and 300kHz bandwidth. The series offers a differential output and can be connected directly to most microcontrollers (MCUs). According to Riedon, it is currently the industry’s only amplifying active shunt with an analog output.

With far less susceptibility to temperature drift, the need for routine calibration can be eliminated. They also have a rapid response time of less than 1.5μs. The amplified analog output and integrated protection enables these current sensors can be placed on either the high or low side of a circuit, thereby enabling easy integration. Physical construction consists of a power bus bar with an isolated sensor housing encased around the center of the bar. A JST JWPF series four-pin connector provides the interface to (1) power, (2) ground, (3) +Vin and (4) –Vin for the encapsulated sensor. The corresponding mating connector is JST type J04R-JWPF-VSLE-S (housing) and SWPR-001T-P025 (contact).

The differential output effectively negates the Thermo-EMK and eliminates all associated deviations that arise due to a temperature gradient above the block. Unlike other shunt solutions, the fully UL94-V0 encapsulated block provides enhanced isolation of 1500VDc (1000 VACeff), which allows it to be mounted in inverters on the high-side, although the installation on the low-side is recommended as best practice.

Since the SSA contains an amplifier, the resistance value is extremely low, because the detected voltage is multiplied internally. Therefore, the power dissipation for measuring currents up to 1000 A is in the range of 5 to 20 W. The robust module includes an AEC-Q100 certified insulated amplifier from Texas Instruments and is therefore also suitable for the strict automotive applications that must cover the extended operating temperature range from -40 to 125 °C.

The insulated amplifier offers a differential output with a number of advantages. If a single-ended signal is required, this can be provided with a simple operational amplifier circuit (OPV). The differential output of the isolated amplifier is often converted into a single-ended analog output with an OPV-based circuit. This circuit can also implement a low-pass filter to further reduce the signal bandwidth to a desired bandwidth, thereby improving the noise performance of the system.

Optional Mounting Hardware and Cable Assembly

For ease of mounting, an optional mounting fixture, the SSA-BASE, is available for models SSA-100 thru SSA-500. It is constructed of UL 94-V0 rated materials and uses 5/16-18 stainless steel hardware. An optional connector cable assembly, the SSA-CABLE-1M, is also available. The 1-meter standard cable is compatible with all SSA models.

Features & Benefits:

  • 100A to 1000A
  • 1500VDC Reinforced Isolation
  • Amplified Output
  • 1% Tolerance
  • Compared to Hall Effect Technology:

» Superior Overall Current Measurement Accuracy
» Unipolar Power Supply
» Lower Temperature Drift
» No Periodic Calibration
» Higher operating temperature range

Applications:

  • Battery Systems
  • UPS systems
  • Motor Drives
  • Frequency In

As a franchise distributor for Riedon, New Yorker Electronics supplies Riedon’s full lineup of Power Resistors, Precision Resistors, Surface Mount Resistors, High Temperature Resistors, High Power Resistors and Custom Resistors.
